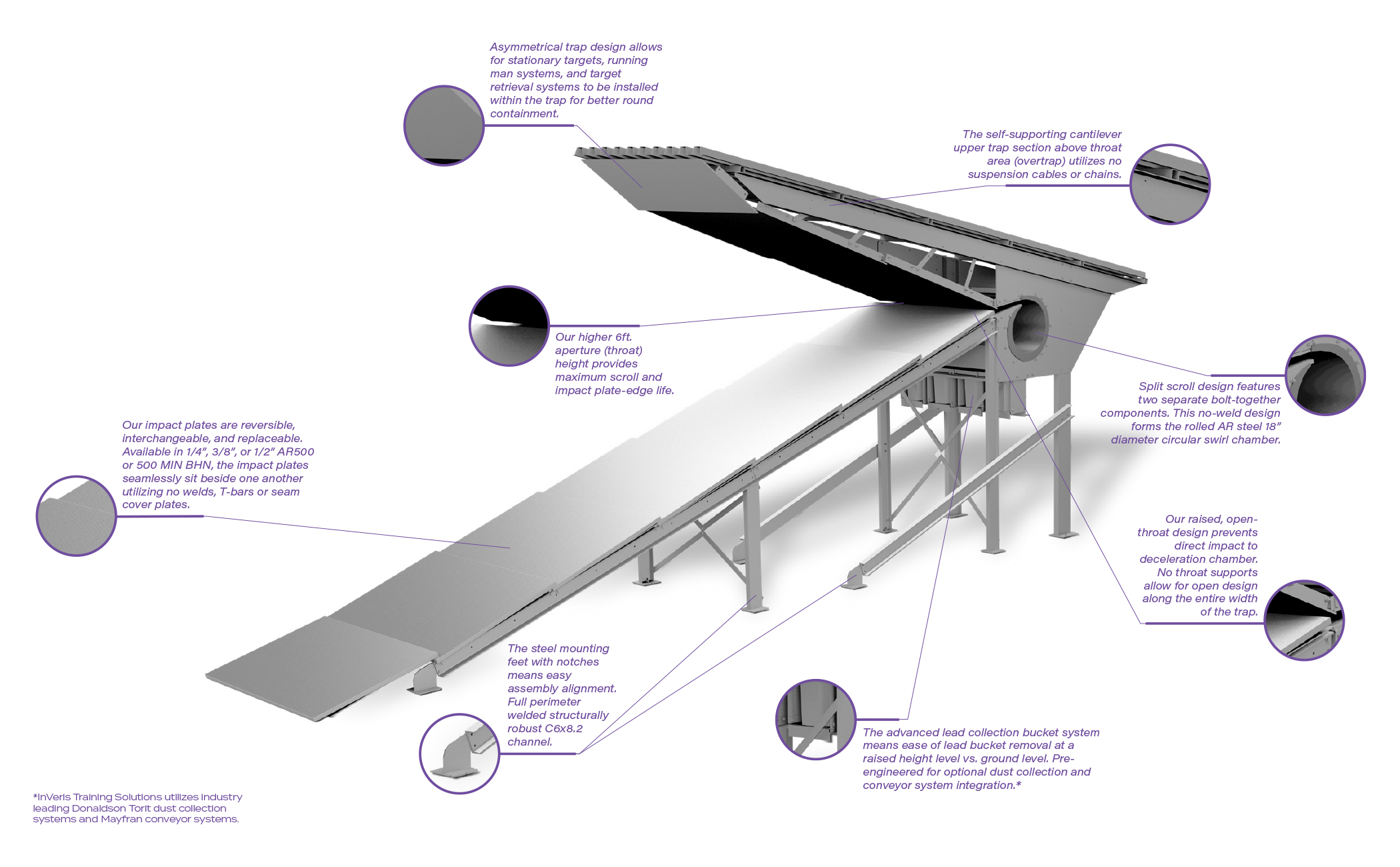

Model LE5000 Escalator Steel Bullet Trap Specifications
Designed for constant use:
with all handgun ammunition including .22, .357, .38, .45, .44 magnum
with all handgun or machine gun ammunition including 9 mm, 10 mm, and .40 caliber
with all lead shotgun ammunition including 12 gauge lead slugs
and with all soft nose rifle ammunition with muzzle energies under 4,000 foot pounds and velocity not exceeding 4,000 feet per second, including .223, .308 and .30 caliber
Optional ½” 500 MIN BHN impact plates and AR400 scrolls allow heavy machine gun and sniper rifle ammunition including .50 cal and .338 lapua
Steel bullet traps are not designed for steel core or armor piercing ammunition
Primary impact plates and sidewalls are offered in various abrasion resistant (AR) armor plate thicknesses and hardness including 1/4”, 3/8” and 1/2” AR500 or 500 MIN BHN
Interchangeable and reversible lower impact plates and overtrap plates arranged to assure a multiplicity of impacts before the particles enter the deceleration chamber for collection
27’ D x 9’ H x Width of Range (service area behind the trap with an entry point is needed)
Asymmetrical geometry of trap allows running man systems, turning targets or popup targets to be utilized within the trap area and without interference with the trap
Spent lead sealed pails recovery system
Constructed of special heat-treated steel frames supporting the impact plates at a shallow 15° angle, away from the shooter
The AR225 (optional AR400) rear shell scroll assembly is readily removable for inspection, cleaning and replacement
Assembled entirely by mechanical joints with no field cutting or welding required for construction or replacement of components
For structural integrity and safety, the LE5000 frame stanchion supports are located at each firing lane and do not require tensioned cross cable supports
All trap surfaces are factory primed on all sides
Trap is divided into spaces corresponding to shooting points. Targets approximately centered on respective impact plates and divisions between impact plates occur roughly midway between target centers
Parts fit through a standard 36” W door opening
Optional lead collection conveyor system moves particles into a sealed shipping container (lead collection conveyor motor: 230/460 VAC, 3 phase, 60 Hz).
Optional airborne particulate cartridge filtration system draws lead dust from the trap opening through the containment chamber and lead conveyor system into a series of low maintenance cartridge filters. Air passes through a HEPA assembly with inlet plenum to provide 99.97% cleaning efficiency on .30-micron particles before discharge (airborne particulate blower motor: 230/460 VAC, 3 phase, 60 Hz; Airborne particulate pulsing controls: 110 VAC, single phase, 60 Hz; Compressed air requirements for airborne particulate pulsing: 90 psi).
